基于FPGA的4位十进制密码锁VHDL代码Quartus仿真

名称：基于FPGA的4位十进制密码锁VHDL代码Quartus仿真

软件：Quartus

语言：VHDL

代码功能：

4位十进制密码锁

1、可以输入0~9个数字；

2、密码为4位，输入错误可以删除；

3、密码正确led提示开锁，密码错误达3次报警；

4、可以通过按键修改密码。

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

演示视频：

设计文档：

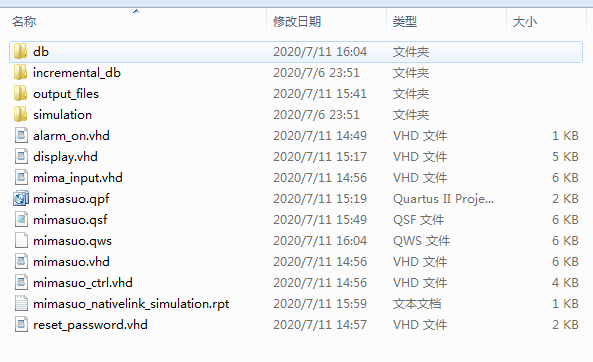

1. 工程文件

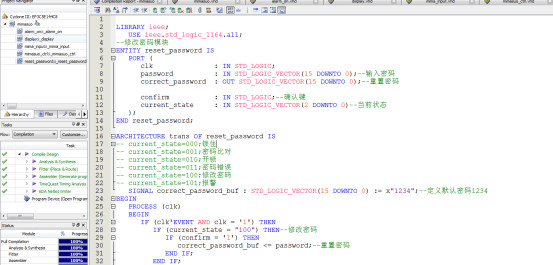

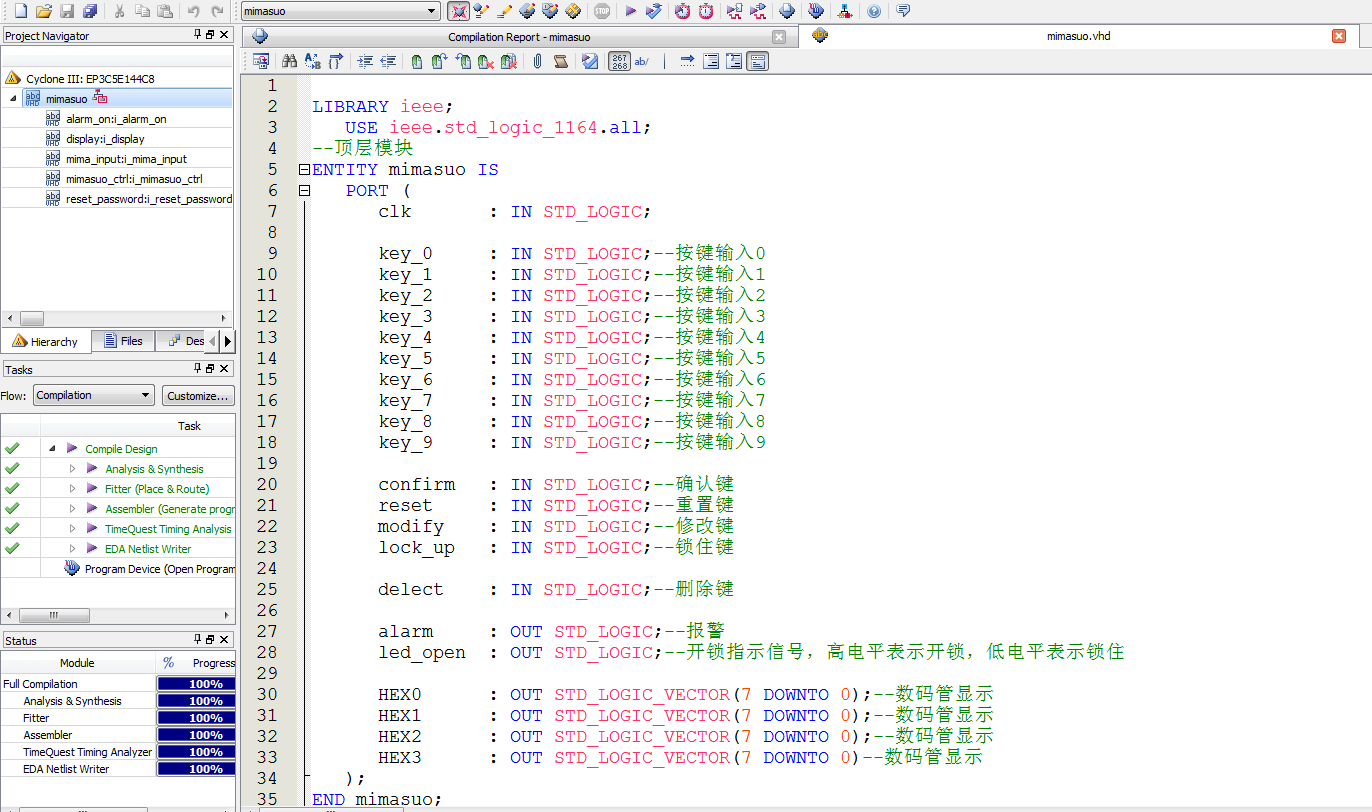

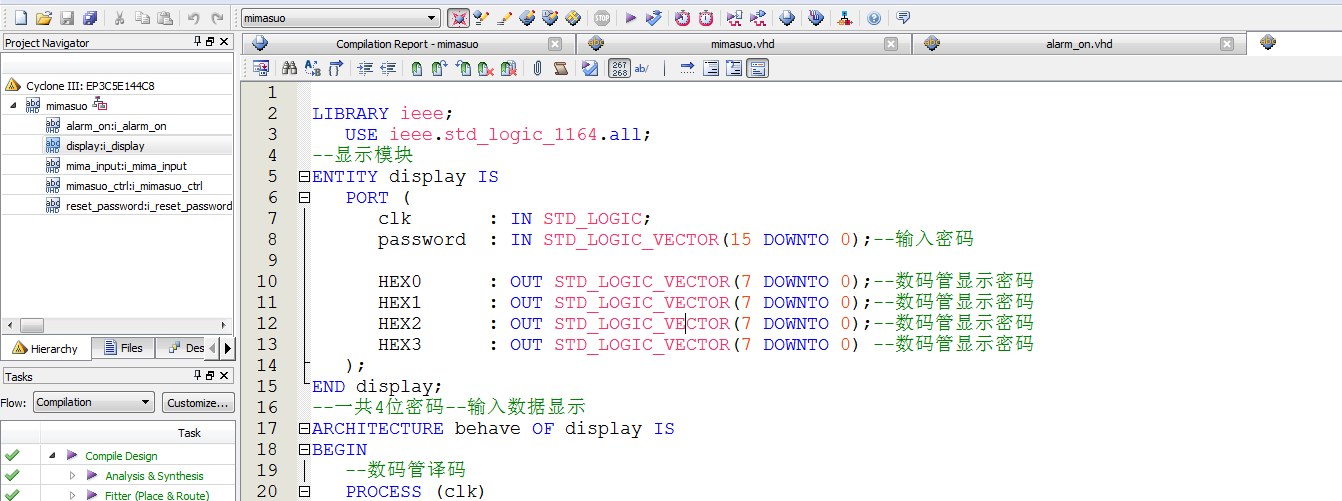

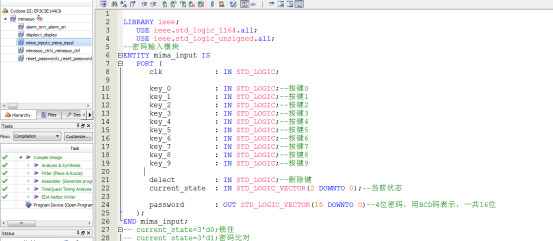

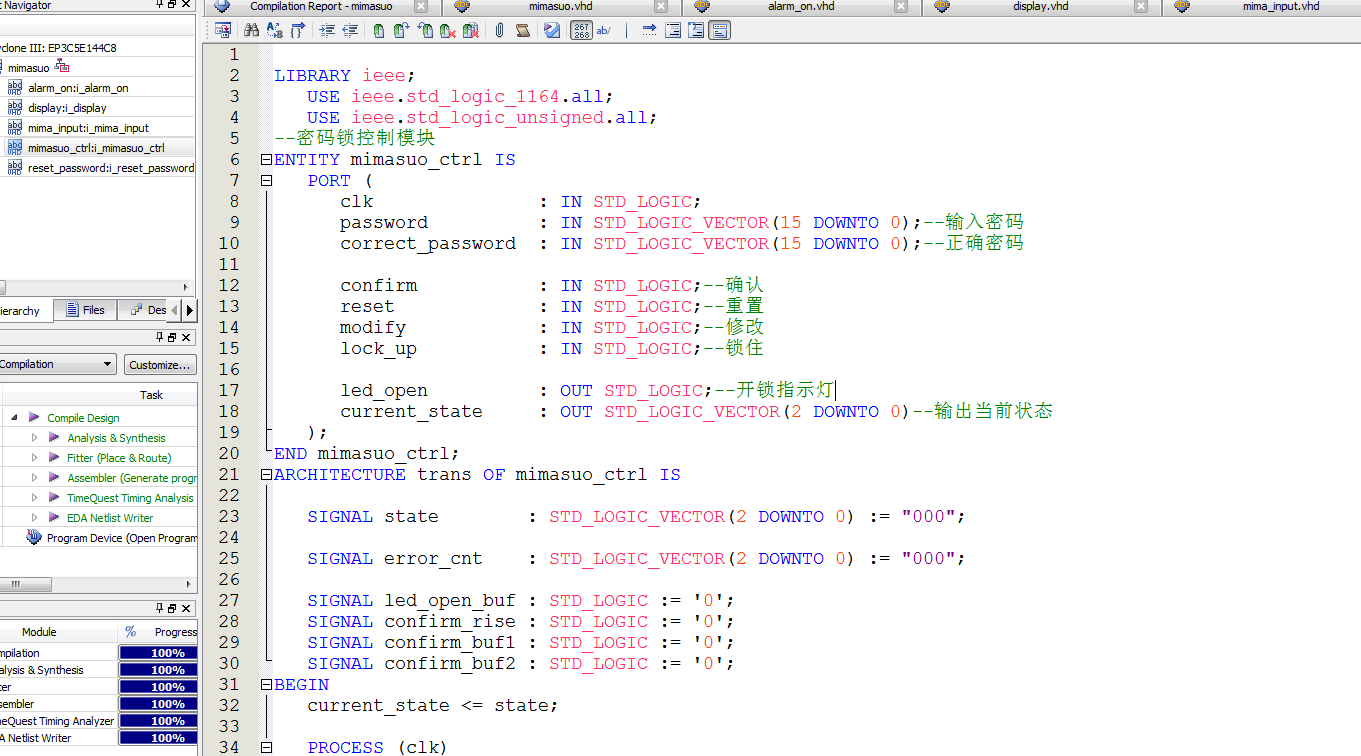

2. 程序文件

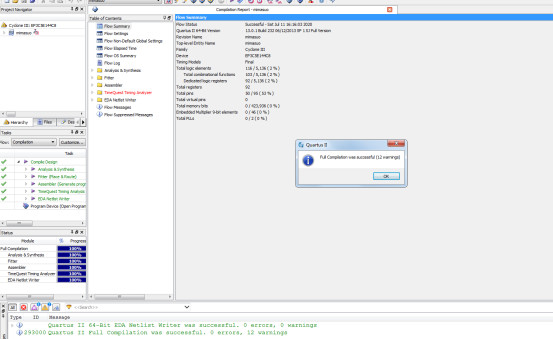

3. 程序编译

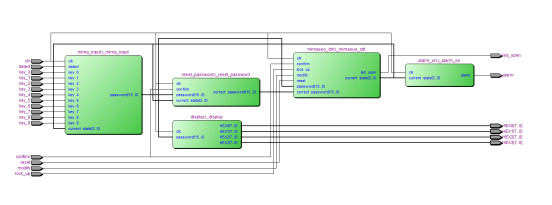

4. RTL图

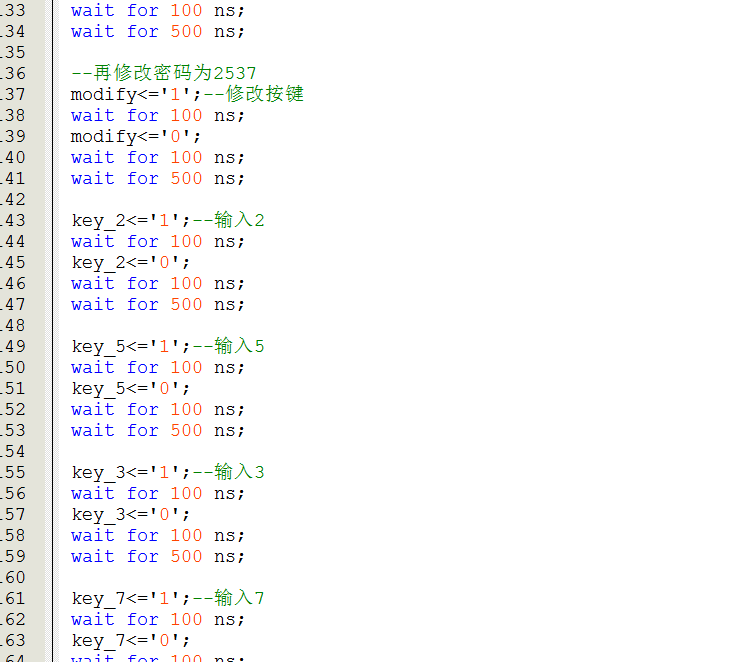

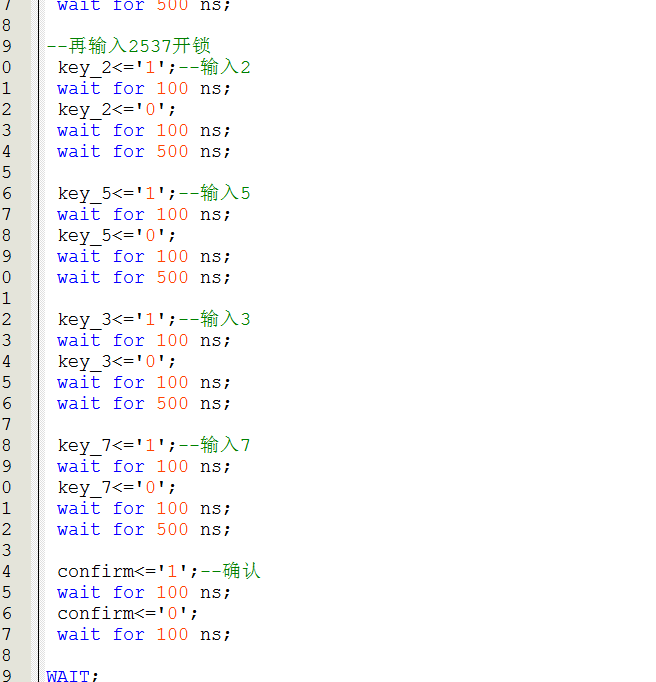

5. Testbench

6. 仿真图

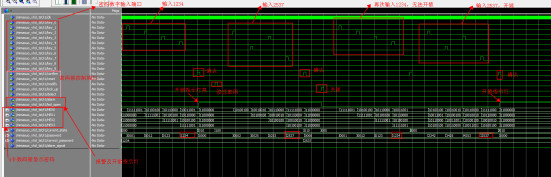

整体仿真图

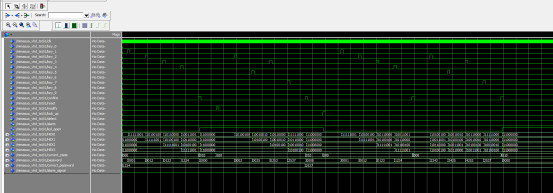

显示模块

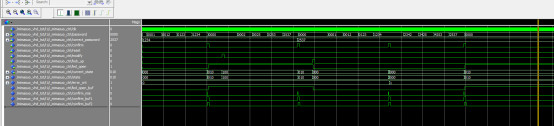

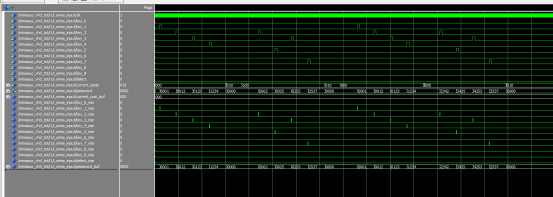

密码输入模块

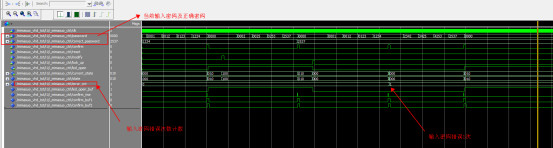

密码锁控制模块

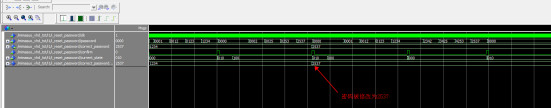

密码修改模块

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
???USE?ieee.std_logic_unsigned.all;
--密码输入模块
ENTITY?mima_input?IS
???PORT?(
??????clk????????????:?IN?STD_LOGIC;
??????
??????key_0??????????:?IN?STD_LOGIC;--按键0
??????key_1??????????:?IN?STD_LOGIC;--按键1
??????key_2??????????:?IN?STD_LOGIC;--按键2
??????key_3??????????:?IN?STD_LOGIC;--按键3
??????key_4??????????:?IN?STD_LOGIC;--按键4
??????key_5??????????:?IN?STD_LOGIC;--按键5
??????key_6??????????:?IN?STD_LOGIC;--按键6
??????key_7??????????:?IN?STD_LOGIC;--按键7
??????key_8??????????:?IN?STD_LOGIC;--按键8
??????key_9??????????:?IN?STD_LOGIC;--按键9
??
??????delect?????????:?IN?STD_LOGIC;--删除键
??????current_state??:?IN?STD_LOGIC_VECTOR(2?DOWNTO?0);--当前状态
??????
??????password???????:?OUT?STD_LOGIC_VECTOR(15?DOWNTO?0)--4位密码，用BCD码表示，一共16位
???);
END?mima_input;
--?current_state=3'd0;锁住
--?current_state=3'd1;密码比对
--?current_state=3'd2;开锁
--?current_state=3'd3;密码错误
--?current_state=3'd4;修改密码
--?current_state=3'd5;报警
ARCHITECTURE?trans?OF?mima_input?IS
?--定义中间信号
???SIGNAL?current_num_buf??:?STD_LOGIC_VECTOR(2?DOWNTO?0):="000";--当前输入密码个数
???SIGNAL?delect_buf1???:?STD_LOGIC?:=?'0';?
???SIGNAL?delect_buf2???:?STD_LOGIC?:=?'0';?
???SIGNAL?key_0_buf1???:?STD_LOGIC?:=?'0';
???SIGNAL?key_1_buf1???:?STD_LOGIC?:=?'0';
???SIGNAL?key_2_buf1???:?STD_LOGIC?:=?'0';
???SIGNAL?key_3_buf1???:?STD_LOGIC?:=?'0';
???SIGNAL?key_4_buf1???:?STD_LOGIC?:=?'0';
???SIGNAL?key_5_buf1???:?STD_LOGIC?:=?'0';
???SIGNAL?key_6_buf1???:?STD_LOGIC?:=?'0';
???SIGNAL?key_7_buf1???:?STD_LOGIC?:=?'0';
???SIGNAL?key_8_buf1???:?STD_LOGIC?:=?'0';
???SIGNAL?key_9_buf1???:?STD_LOGIC?:=?'0';
???
???SIGNAL?key_0_buf2???:?STD_LOGIC?:=?'0';
???SIGNAL?key_1_buf2???:?STD_LOGIC?:=?'0';
???SIGNAL?key_2_buf2???:?STD_LOGIC?:=?'0';
???SIGNAL?key_3_buf2???:?STD_LOGIC?:=?'0';
???SIGNAL?key_4_buf2???:?STD_LOGIC?:=?'0';
???SIGNAL?key_5_buf2???:?STD_LOGIC?:=?'0';
???SIGNAL?key_6_buf2???:?STD_LOGIC?:=?'0';
???SIGNAL?key_7_buf2???:?STD_LOGIC?:=?'0';
???SIGNAL?key_8_buf2???:?STD_LOGIC?:=?'0';
???SIGNAL?key_9_buf2???:?STD_LOGIC?:=?'0';
???
???SIGNAL?key_0_rise???:?STD_LOGIC;
???SIGNAL?key_1_rise???:?STD_LOGIC;
???SIGNAL?key_2_rise???:?STD_LOGIC;
???SIGNAL?key_3_rise???:?STD_LOGIC;
???SIGNAL?key_4_rise???:?STD_LOGIC;
???SIGNAL?key_5_rise???:?STD_LOGIC;
???SIGNAL?key_6_rise???:?STD_LOGIC;
???SIGNAL?key_7_rise???:?STD_LOGIC;
???SIGNAL?key_8_rise???:?STD_LOGIC;
???SIGNAL?key_9_rise???:?STD_LOGIC;
???SIGNAL?delect_rise???:?STD_LOGIC;
???SIGNAL?password_buf?:?STD_LOGIC_VECTOR(15?DOWNTO?0)?:=?"0000000000000000";
BEGIN
--信号缓存
