AD7705驱动及UART发送设计VHDL代码Quartus仿真

名称：AD7705驱动及UART发送设计VHDL代码Quartus仿真

软件：Quartus

语言：VHDL

代码功能：

AD7705输入（4000喻上m入)/7(仿真输出=学号后3位),8位UART发送输出

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

演示视频：

设计文档：

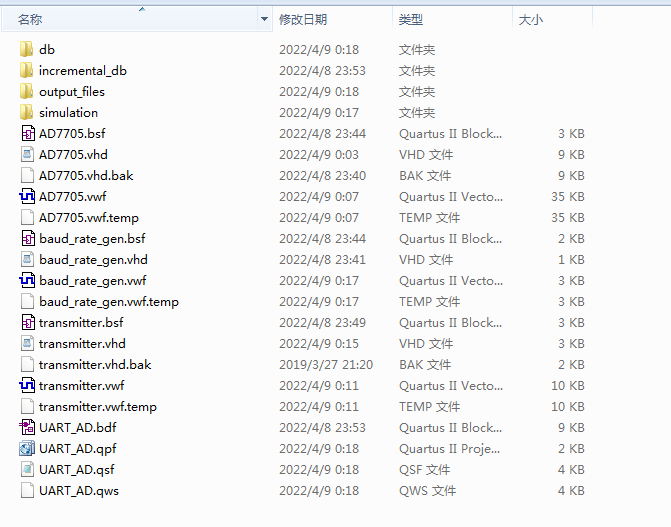

1. 工程文件

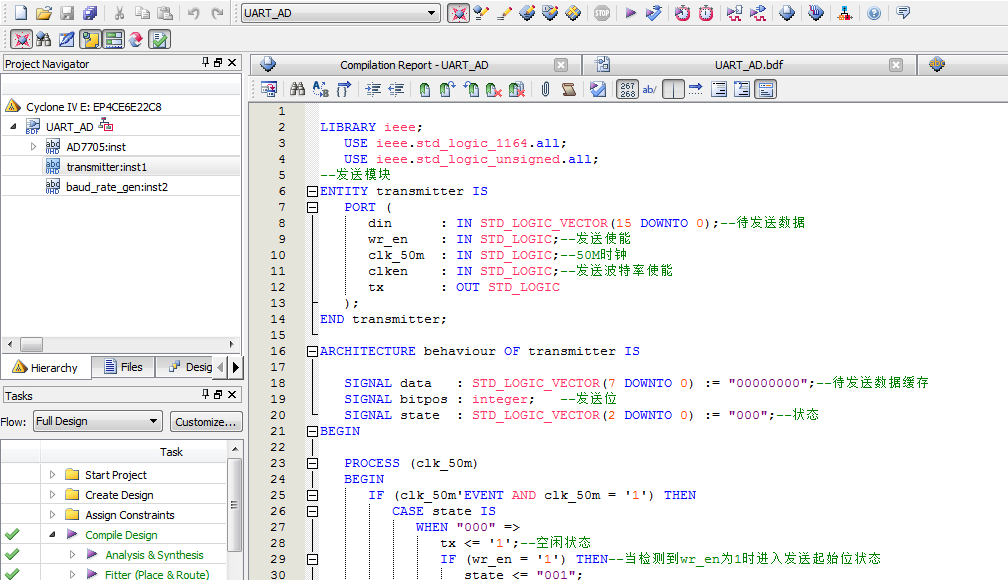

2. 程序文件

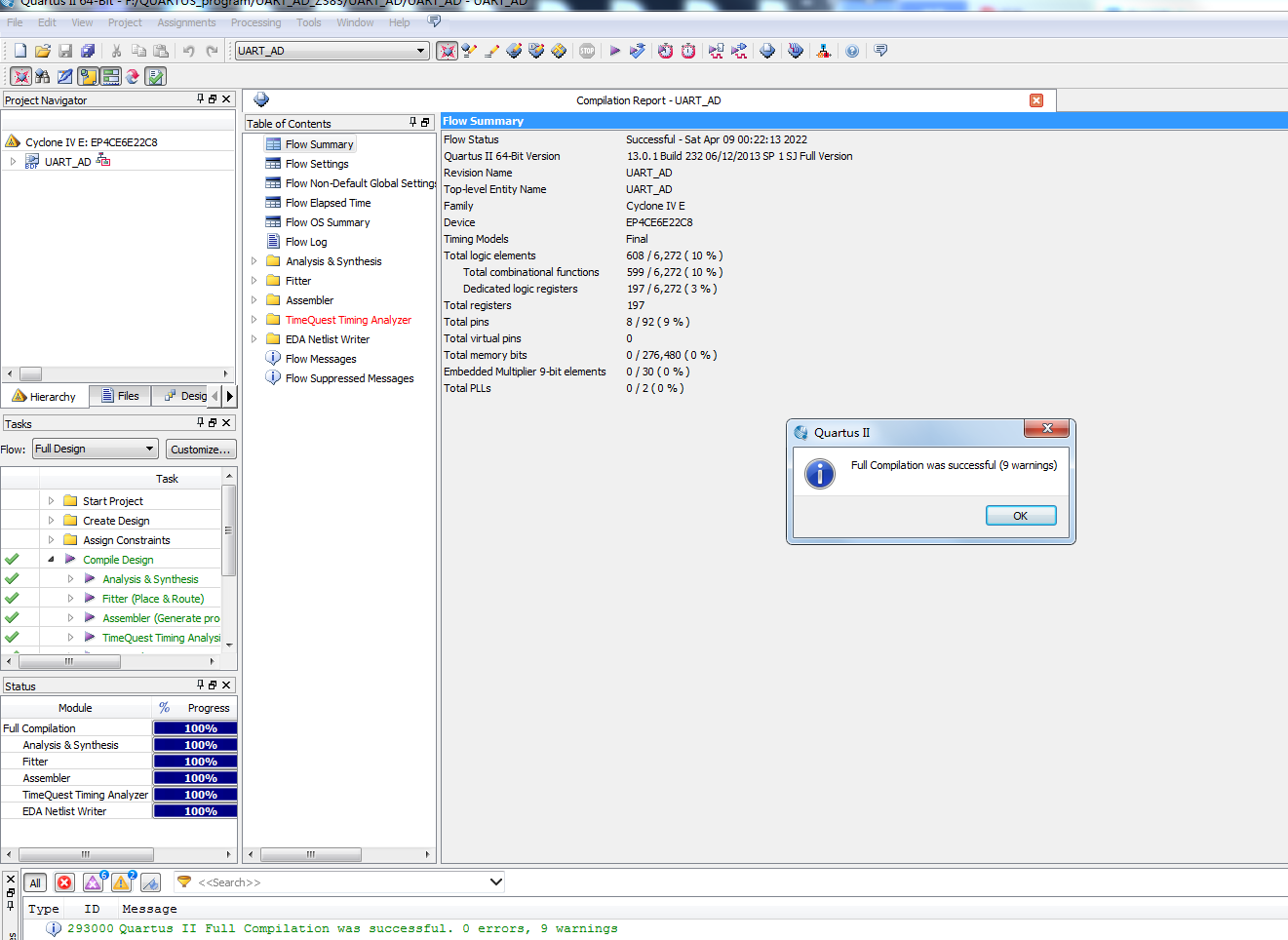

3. 程序编译

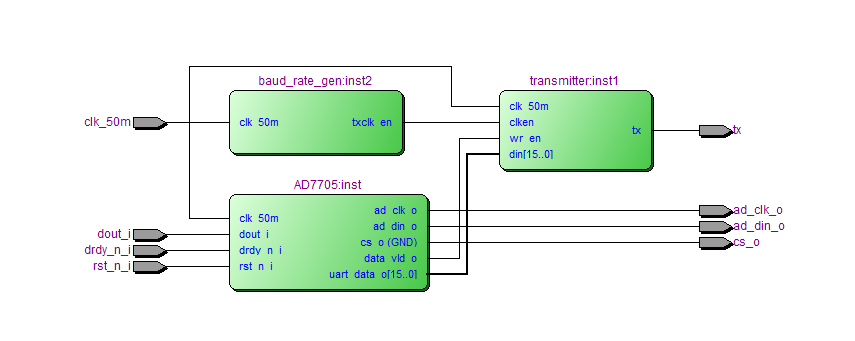

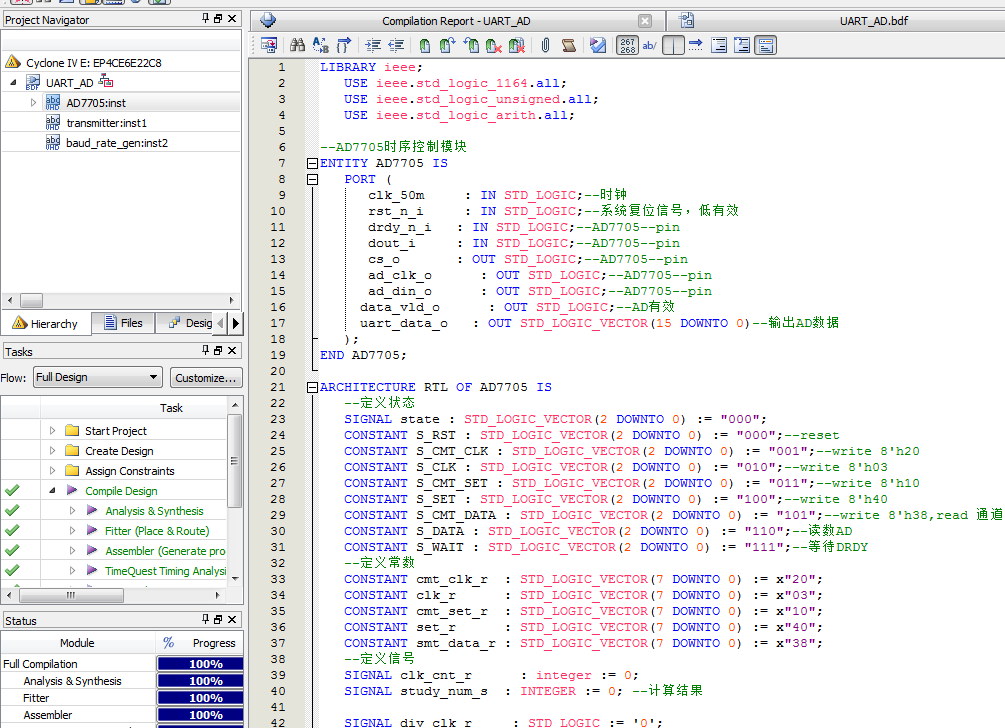

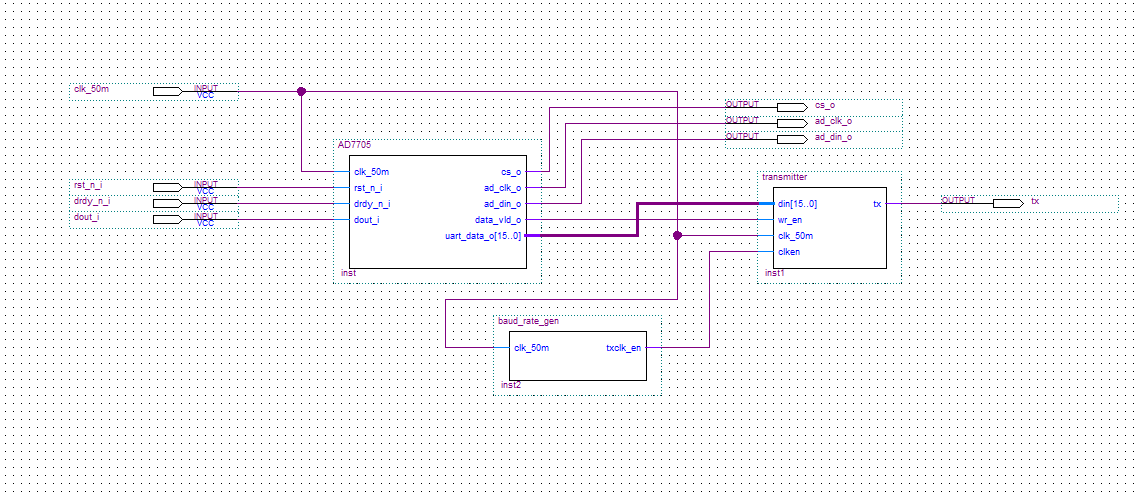

4. RTL图

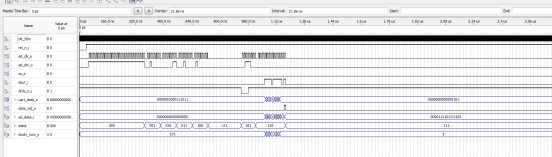

5. 仿真图

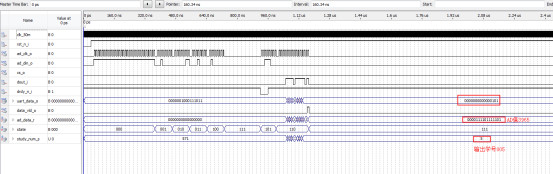

AD7705模块仿真

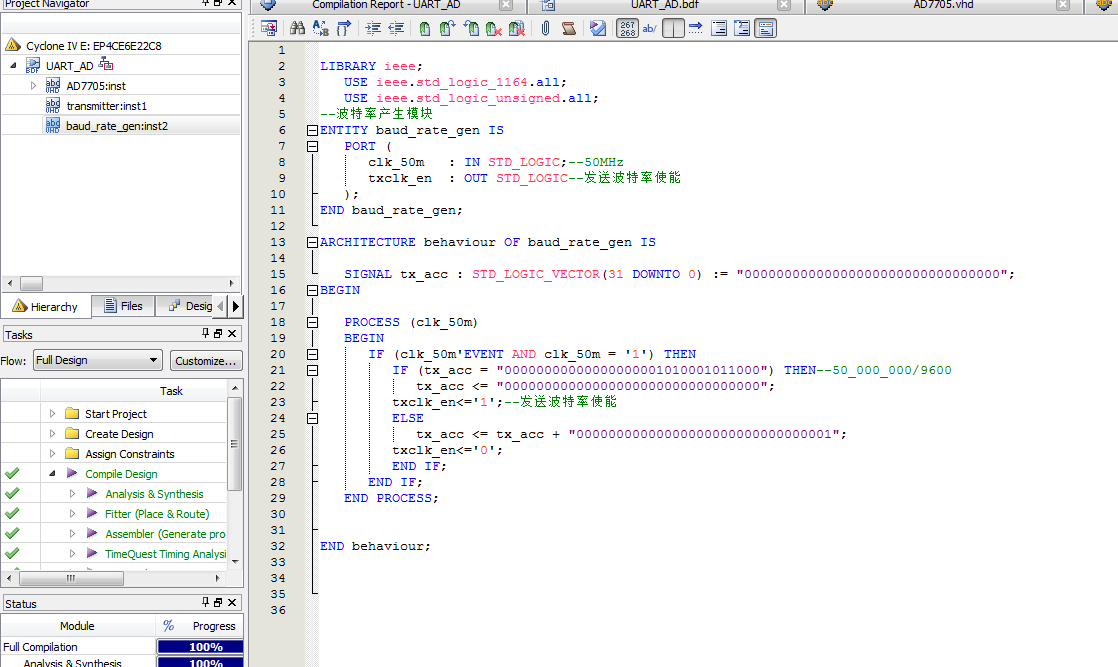

波特率产生模块

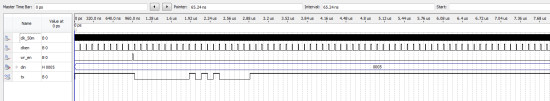

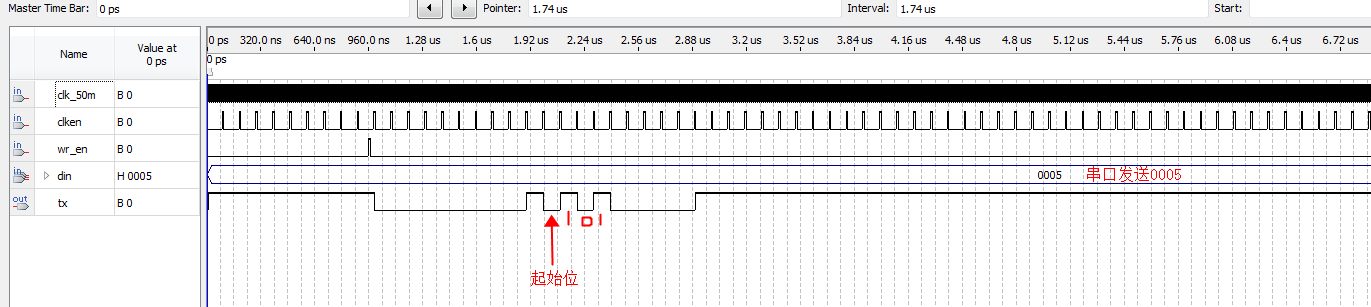

串口发送模块仿真

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
???USE?ieee.std_logic_unsigned.all;
USE?ieee.std_logic_arith.all;
--AD7705时序控制模块
ENTITY?AD7705?IS
???PORT?(
??????clk_50m?????:?IN?STD_LOGIC;--时钟
??????rst_n_i?????:?IN?STD_LOGIC;--系统复位信号，低有效
??????drdy_n_i???:?IN?STD_LOGIC;--AD7705--pin
??????dout_i?????:?IN?STD_LOGIC;--AD7705--pin
??????cs_o???????:?OUT?STD_LOGIC;--AD7705--pin
??????ad_clk_o??????:?OUT?STD_LOGIC;--AD7705--pin
??????ad_din_o??????:?OUT?STD_LOGIC;--AD7705--pin
??data_vld_o??????:?OUT?STD_LOGIC;--AD有效
??uart_data_o???:?OUT?STD_LOGIC_VECTOR(15?DOWNTO?0)--输出AD数据
???);
END?AD7705;
ARCHITECTURE?RTL?OF?AD7705?IS
???--定义状态
???SIGNAL?state?:?STD_LOGIC_VECTOR(2?DOWNTO?0)?:=?"000";
???CONSTANT?S_RST?:?STD_LOGIC_VECTOR(2?DOWNTO?0)?:=?"000";--reset
???CONSTANT?S_CMT_CLK?:?STD_LOGIC_VECTOR(2?DOWNTO?0)?:=?"001";--write?8'h20
???CONSTANT?S_CLK?:?STD_LOGIC_VECTOR(2?DOWNTO?0)?:=?"010";--write?8'h03
???CONSTANT?S_CMT_SET?:?STD_LOGIC_VECTOR(2?DOWNTO?0)?:=?"011";--write?8'h10
???CONSTANT?S_SET?:?STD_LOGIC_VECTOR(2?DOWNTO?0)?:=?"100";--write?8'h40
???CONSTANT?S_CMT_DATA?:?STD_LOGIC_VECTOR(2?DOWNTO?0)?:=?"101";--write?8'h38,read?通道1
???CONSTANT?S_DATA?:?STD_LOGIC_VECTOR(2?DOWNTO?0)?:=?"110";--读数AD
???CONSTANT?S_WAIT?:?STD_LOGIC_VECTOR(2?DOWNTO?0)?:=?"111";--等待DRDY
???--定义常数
???CONSTANT?cmt_clk_r??:?STD_LOGIC_VECTOR(7?DOWNTO?0)?:=?x"20";
???CONSTANT?clk_r??????:?STD_LOGIC_VECTOR(7?DOWNTO?0)?:=?x"03";
???CONSTANT?cmt_set_r??:?STD_LOGIC_VECTOR(7?DOWNTO?0)?:=?x"10";
???CONSTANT?set_r??????:?STD_LOGIC_VECTOR(7?DOWNTO?0)?:=?x"40";
???CONSTANT?smt_data_r?:?STD_LOGIC_VECTOR(7?DOWNTO?0)?:=?x"38";?
???--定义信号
???SIGNAL?clk_cnt_r??????:?integer?:=?0;
???SIGNAL?study_num_s??:?INTEGER?:=?0;?--计算结果
???
???SIGNAL?div_clk_r?????:?STD_LOGIC?:=?'0';
???SIGNAL?div_clk_cnt_r?:?integer?:=?0;
???SIGNAL?clk_vld?????????:?STD_LOGIC?:=?'0';
???SIGNAL?ad_in_r?????:?STD_LOGIC?:=?'0';
???SIGNAL?div_clk_rr?:?STD_LOGIC?:=?'0';
???SIGNAL?div_clk_n_s:?STD_LOGIC;
???SIGNAL?div_clk_p_s:?STD_LOGIC;??
???SIGNAL?ad_data_r??:?STD_LOGIC_VECTOR(15?DOWNTO?0)?:=?"0000000000000000";
???SIGNAL?ad_data_int??:?INTEGER?:=?0;
BEGIN????
???--分频计数
???PROCESS?(clk_50m)
???BEGIN
??????IF?(clk_50m'EVENT?AND?clk_50m?=?'1')?THEN
?????????IF?(rst_n_i?=?'0')?THEN
????????????div_clk_cnt_r?<=?0;
div_clk_rr<='0';
?????????ELSIF?(div_clk_cnt_r?=?9)?THEN--分频比为10
????????????div_clk_cnt_r?<=?0;
?????????ELSE
????????????div_clk_cnt_r?<=?div_clk_cnt_r?+?1;
?????????END?IF;
?
?????????IF?(div_clk_cnt_r?>=?5)?THEN
????????????div_clk_r?<=?'1';--分频为5MHz
?????????ELSE
????????????div_clk_r?<=?'0';
?????????END?IF;

点击链接获取代码文件：http://www.hdlcode.com/index.php?m=home&c=View&a=index&aid=1035
