弹球游戏设计VHDL代码Quartus DE1开发板

名称：弹球游戏设计VHDL代码Quartus? DE1开发板

软件：Quartus

语言：VHDL

代码功能：

VGA弹球游戏DE1开发板带讲解视频

设计一个弹球游戏，并在VGA显示器上显示

1、可以控制游戏开始，开始时数码管显示0分

2、使用按键控制球拍的运动，当控制球拍接住球时，分数加1

3、弹球触碰屏幕边缘或者球拍时可以反弹

4、可以控制小球的移动速度和球拍的大小

5、当未成功接球时，游戏结束

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

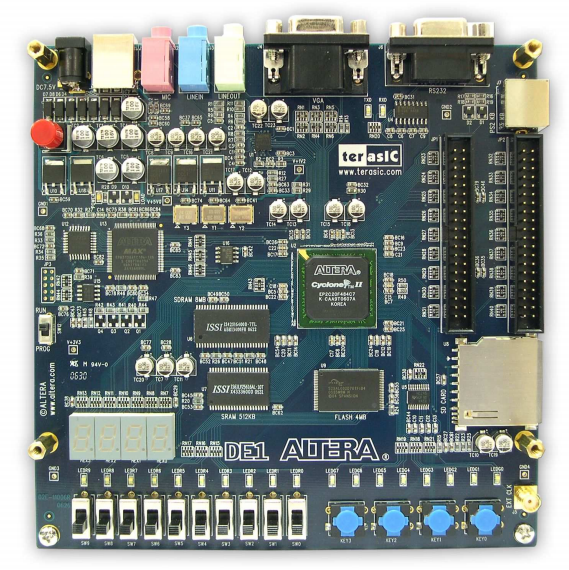

本代码已在DE1开发板验证，DE1开发板如下，其他开发板可以修改管脚适配：

设计文档：

1.?代码讲解视频

https://www.bilibili.com/video/BV15F2KYcE4A/

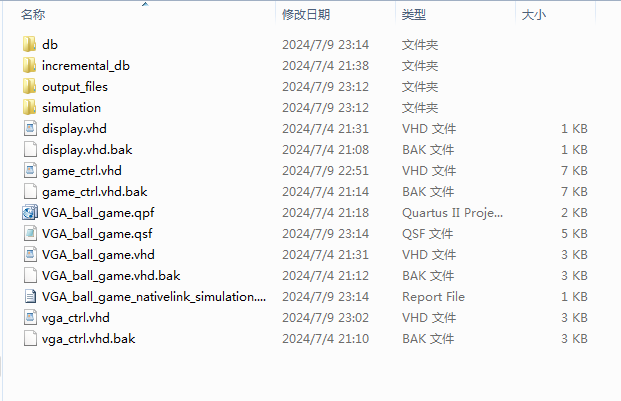

2.?工程文件

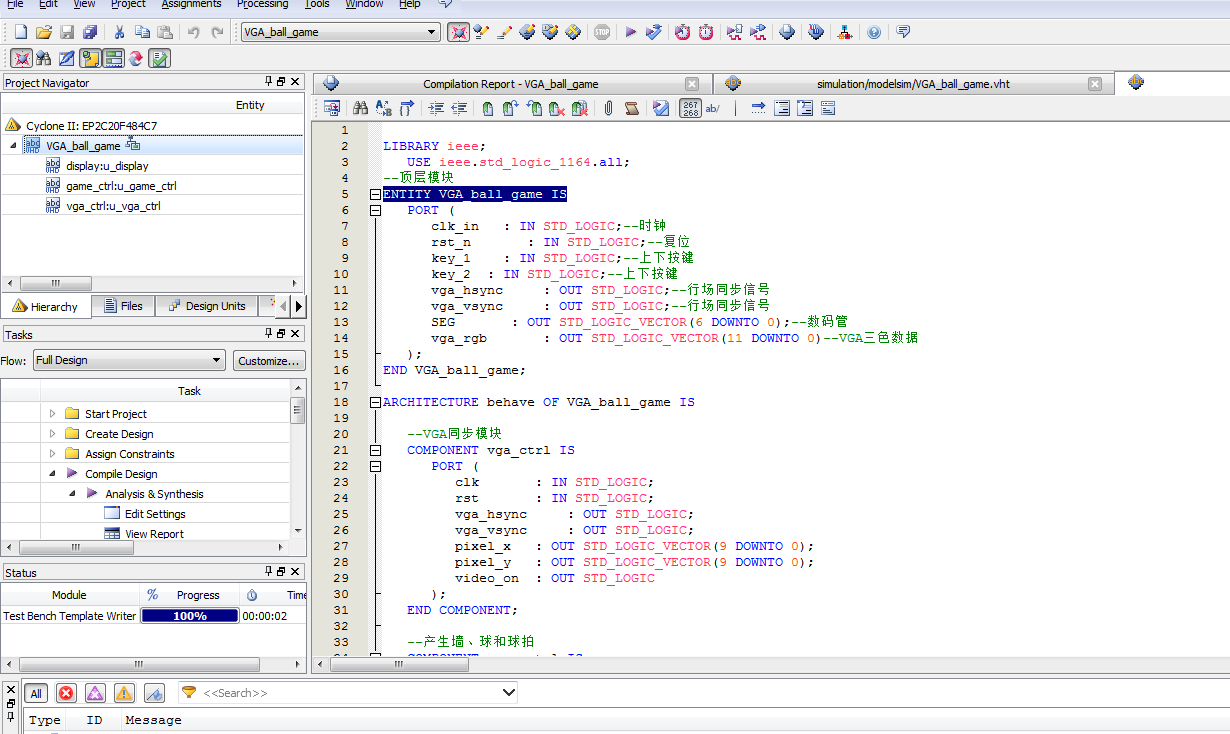

3.?程序文件

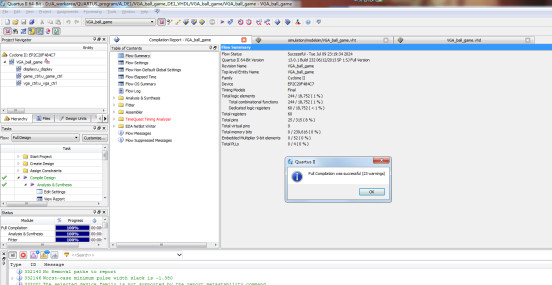

4.?程序编译

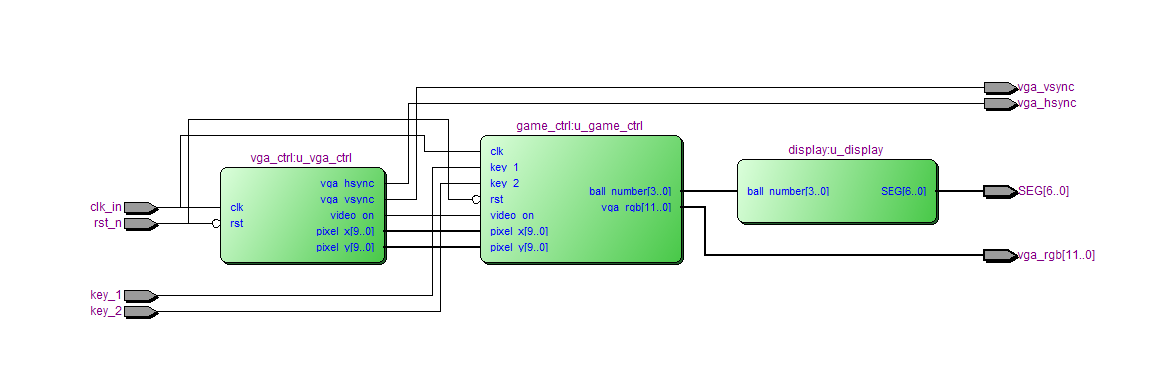

5.?RTL图

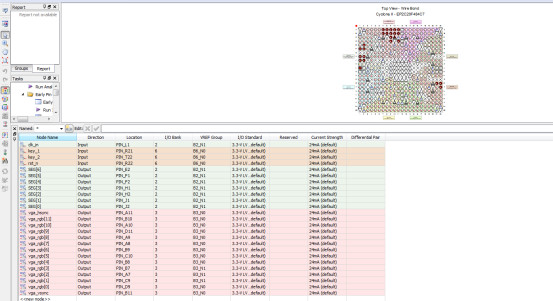

6.?管脚分配

7.?Testbench

8.?仿真图

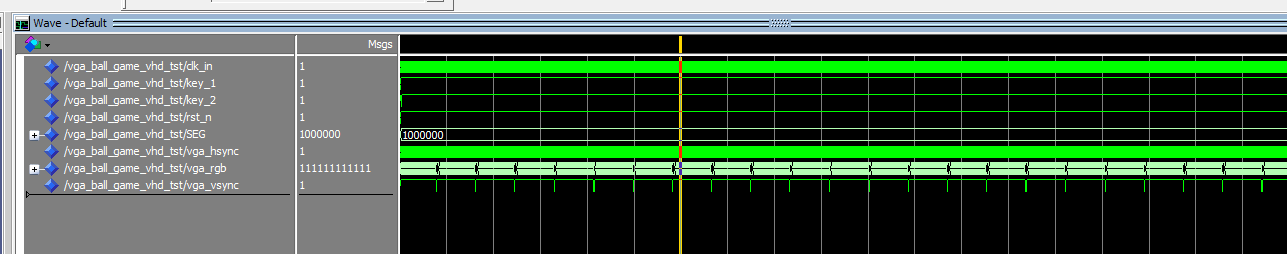

整体仿真图

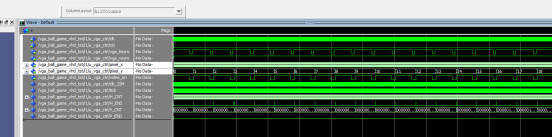

VGA控制模块

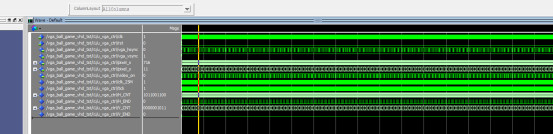

游戏控制模块

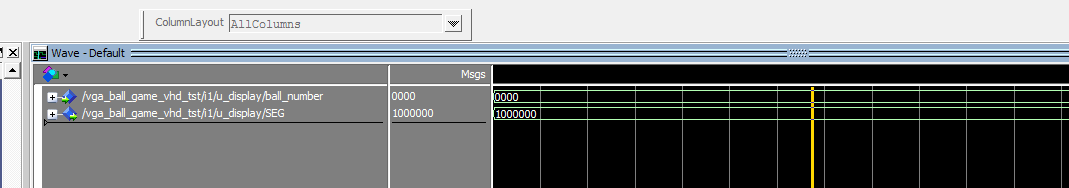

数码管显示模块

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
--顶层模块
ENTITY?VGA_ball_game?IS
???PORT?(??????
??????clk_in???:?IN?STD_LOGIC;--时钟
??????rst_n???????:?IN?STD_LOGIC;--复位
??????key_1????:?IN?STD_LOGIC;--上下按键
??????key_2??:?IN?STD_LOGIC;--上下按键
??????vga_hsync?????:?OUT?STD_LOGIC;--行场同步信号
??????vga_vsync?????:?OUT?STD_LOGIC;--行场同步信号
SEG???????:?OUT?STD_LOGIC_VECTOR(6?DOWNTO?0);--数码管
??????vga_rgb???????:?OUT?STD_LOGIC_VECTOR(11?DOWNTO?0)--VGA三色数据
???);
END?VGA_ball_game;
ARCHITECTURE?behave?OF?VGA_ball_game?IS
???--VGA同步模块
???COMPONENT?vga_ctrl?IS
??????PORT?(
?????????clk???????:?IN?STD_LOGIC;
?????????rst???????:?IN?STD_LOGIC;
?????????vga_hsync?????:?OUT?STD_LOGIC;
?????????vga_vsync?????:?OUT?STD_LOGIC;
?????????pixel_x???:?OUT?STD_LOGIC_VECTOR(9?DOWNTO?0);
?????????pixel_y???:?OUT?STD_LOGIC_VECTOR(9?DOWNTO?0);
?????????video_on??:?OUT?STD_LOGIC
??????);
???END?COMPONENT;
???--产生墙、球和球拍
???COMPONENT?game_ctrl?IS
??????PORT?(
?????????clk???????:?IN?STD_LOGIC;
?????????rst???????:?IN?STD_LOGIC;
?????????key_1????:?IN?STD_LOGIC;--上下按键
?????????key_2??:?IN?STD_LOGIC;--上下按键
?????????pixel_x???:?IN?STD_LOGIC_VECTOR(9?DOWNTO?0);
?????????pixel_y???:?IN?STD_LOGIC_VECTOR(9?DOWNTO?0);
?????????video_on??:?IN?STD_LOGIC;
ball_number?????:?OUT?STD_LOGIC_VECTOR(3?DOWNTO?0);
?????????vga_rgb???????:?OUT?STD_LOGIC_VECTOR(11?DOWNTO?0)
??????);
???END?COMPONENT;
--数码管模块
COMPONENT?display?is
??PORT(
?ball_number:IN?STD_LOGIC_VECTOR(3?DOWNTO?0);
???????SEG:out?STD_LOGIC_VECTOR(6?DOWNTO?0)
?);
end?COMPONENT;
???SIGNAL?video_on????:?STD_LOGIC;
???SIGNAL?rst_p???????:?STD_LOGIC;
???SIGNAL?pixel_x?????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?pixel_y?????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?ball_number???????:?STD_LOGIC_VECTOR(3?DOWNTO?0);
BEGIN
????--?Drive?referenced?outputs
????rst_p?<=?not?rst_n;
????--VGA同步模块
????u_vga_ctrl?:?vga_ctrl
??????PORT?MAP?(
?????????clk???????=>?clk_in,
?????????rst???????=>?rst_p,
?????????vga_hsync?????=>?vga_hsync,
?????????vga_vsync?????=>?vga_vsync,
?????????pixel_x???=>?pixel_x,
?????????pixel_y???=>?pixel_y,
?????????video_on??=>?video_on
??????);
