双人弹球游戏VGA显示设计VHDL代码Quartus DE1_SoC开发板

名称：双人弹球游戏VGA显示设计VHDL代码Quartus? DE1_SoC开发板

软件：Quartus

语言：VHDL

代码功能：

设计一个弹球游戏，并在VGA显示器上显示

1、可以控制游戏开始，开始时数码管显示0分；

2、使用按键控制球拍的运动，当控制球拍接住球时，分数加1；

3、弹球触碰屏幕边缘或者球拍时可以反弹；

4、可以控制小球的移动速度和球拍的大小；

5、当未成功接球时，游戏结束。

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

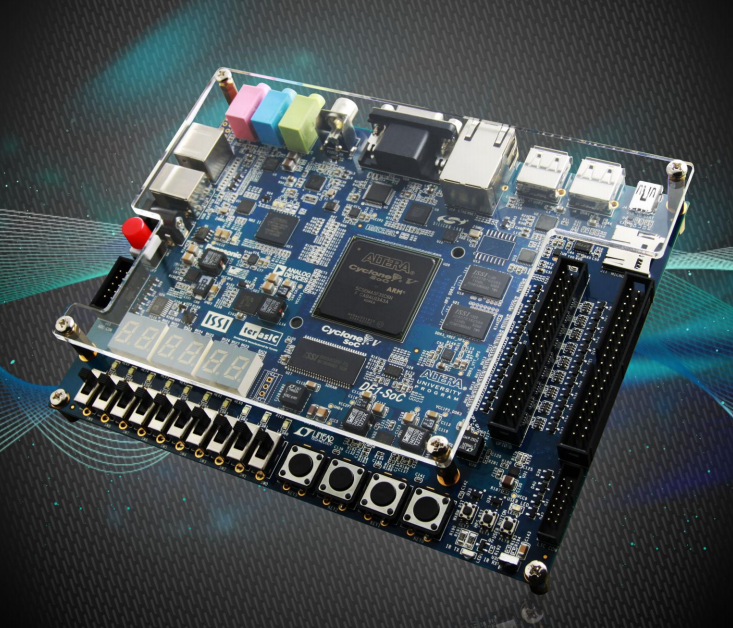

本代码已在DE1_SoC开发板验证，DE1_SoC开发板如下，其他开发板可以修改管脚适配：

演示视频：

设计文档：

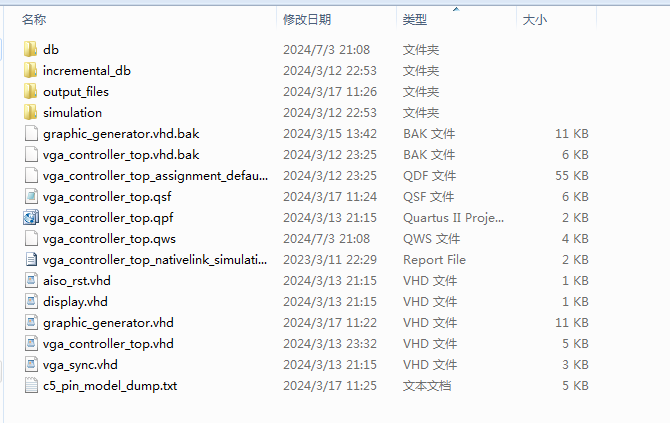

1.?工程文件

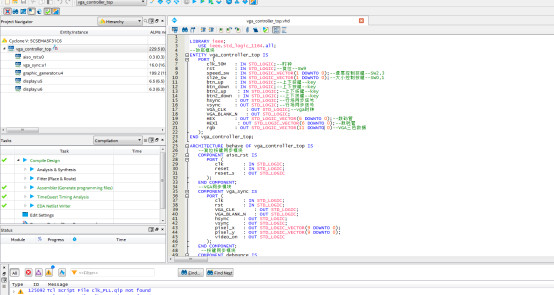

2.?程序文件

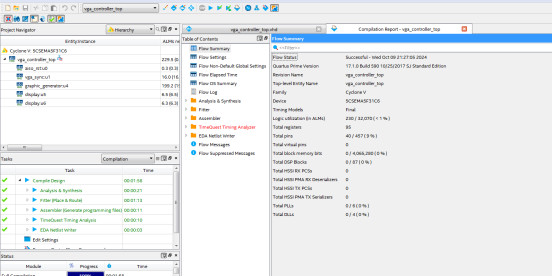

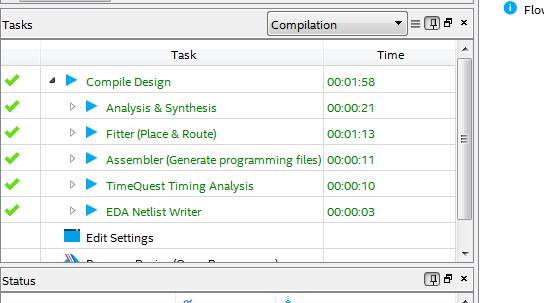

3.?程序编译

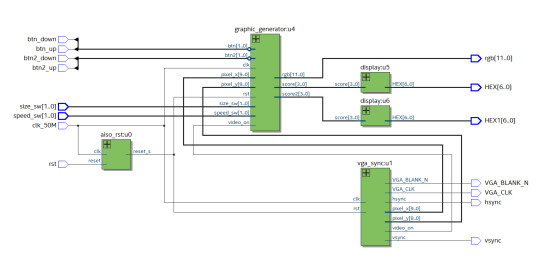

4.?RTL图

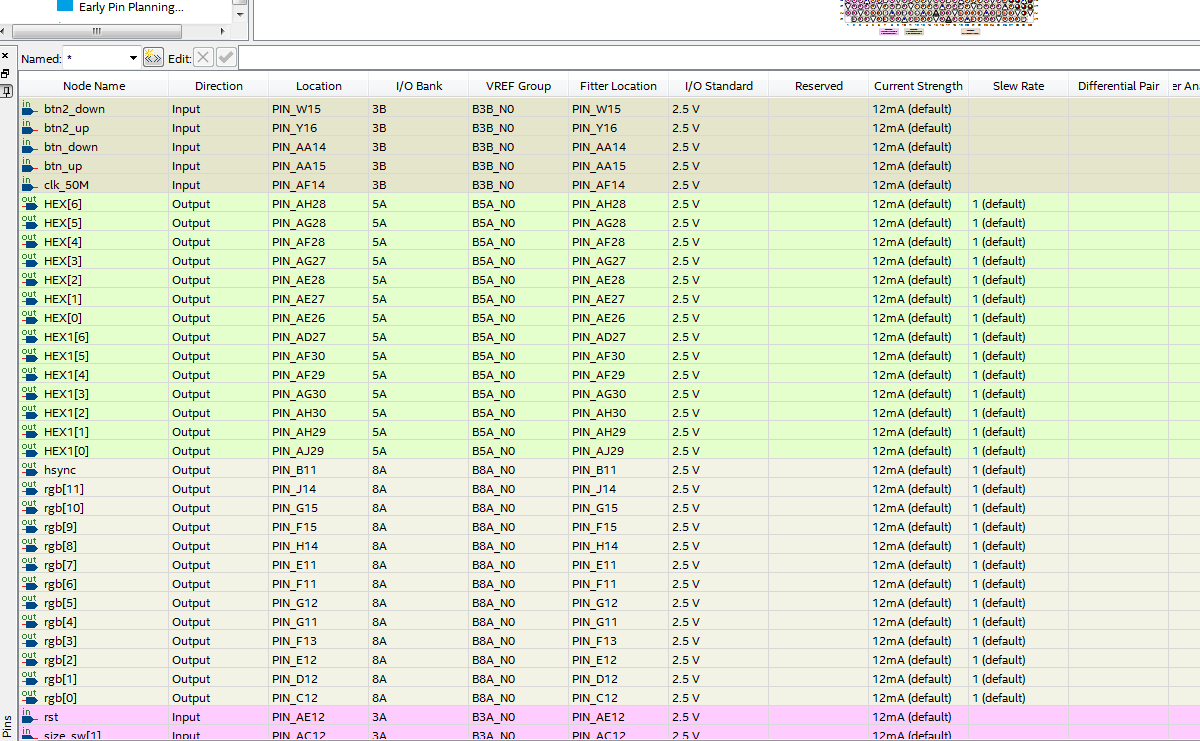

5.?管脚分配

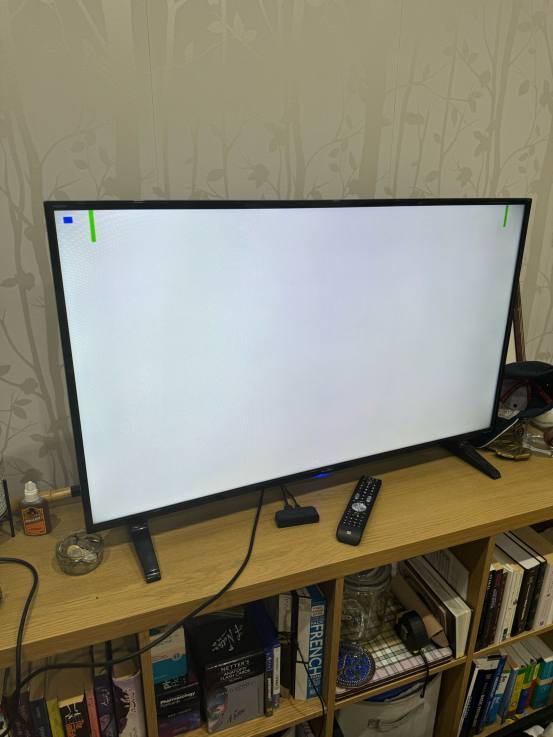

6.?上板验证效果

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
???USE?ieee.std_logic_unsigned.all;
--产生墙、球和球拍
ENTITY?graphic_generator?IS
???PORT?(
??????
??????clk???????:?IN?STD_LOGIC;--时钟
??????rst???????:?IN?STD_LOGIC;--复位?????
??????speed_sw??:?IN?STD_LOGIC_VECTOR(1?DOWNTO?0);--控制速度
??????size_sw???:?IN?STD_LOGIC_VECTOR(1?DOWNTO?0);--控制球拍大小
??????btn???????:?IN?STD_LOGIC_VECTOR(1?DOWNTO?0);--球拍移动按键
btn2???????:?IN?STD_LOGIC_VECTOR(1?DOWNTO?0);--球拍移动按键
??????pixel_x???:?IN?STD_LOGIC_VECTOR(9?DOWNTO?0);--当前x坐标
??????pixel_y???:?IN?STD_LOGIC_VECTOR(9?DOWNTO?0);--当前y坐标
??????video_on??:?IN?STD_LOGIC;--显示使能
??????score?????:?OUT?STD_LOGIC_VECTOR(3?DOWNTO?0);--分数1
score2?????:?OUT?STD_LOGIC_VECTOR(3?DOWNTO?0);--分数2
??????rgb???????:?OUT?STD_LOGIC_VECTOR(11?DOWNTO?0)--RGB颜色
???);
END?graphic_generator;
ARCHITECTURE?behave?OF?graphic_generator?IS
???
???SIGNAL?refr_tick?????:?STD_LOGIC;
???
???SIGNAL?paddle_y_t????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?paddle_y_b????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?paddle_y_reg??:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?paddle_y_next?:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?paddle2_y_t????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?paddle2_y_b????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?paddle2_y_reg??:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?paddle2_y_next?:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???
???SIGNAL?ball_x_l??????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?ball_x_r??????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?ball_y_t??????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?ball_y_b??????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?ball_x_reg????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?ball_y_reg????:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?ball_x_next???:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?ball_y_next???:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?x_delta_reg???:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?x_delta_next??:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?y_delta_reg???:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???SIGNAL?y_delta_next??:?STD_LOGIC_VECTOR(9?DOWNTO?0);
???
???SIGNAL?wall_on???????:?STD_LOGIC;
???SIGNAL?paddle_on?????:?STD_LOGIC;
SIGNAL?paddle2_on?????:?STD_LOGIC;
???SIGNAL?ball_on???????:?STD_LOGIC;
???SIGNAL?wall_rgb??????:?STD_LOGIC_VECTOR(11?DOWNTO?0);
???SIGNAL?paddle_rgb????:?STD_LOGIC_VECTOR(11?DOWNTO?0);
SIGNAL?paddle2_rgb????:?STD_LOGIC_VECTOR(11?DOWNTO?0);
???SIGNAL?ball_rgb??????:?STD_LOGIC_VECTOR(11?DOWNTO?0);
SIGNAL?hit_on???????:?STD_LOGIC:='0';
SIGNAL?hit_on_buf0???????:?STD_LOGIC:='0';
SIGNAL?hit_on_buf1???????:?STD_LOGIC:='0';
SIGNAL?score_buf?????:?STD_LOGIC_VECTOR(3?DOWNTO?0);
SIGNAL?hit2_on???????:?STD_LOGIC:='0';
SIGNAL?hit2_on_buf0???????:?STD_LOGIC:='0';
SIGNAL?hit2_on_buf1???????:?STD_LOGIC:='0';
SIGNAL?score2_buf?????:?STD_LOGIC_VECTOR(3?DOWNTO?0);
