出租车计费器区分白天晚上设计VHDL代码Quartus EP4C实验箱

名称：出租车计费器区分白天晚上设计VHDL代码Quartus? EP4C实验箱

软件：Quartus

语言：VHDL

代码功能：

出租车计费器区分白天晚上

脉冲的个数除以10，代表这个轮子转了多少圈。

假设转一圈代表100米，转10圈是个一公里。

白天一个价晚上一个价,白天起步价是8块，晚上起步价9块，是白天还是晚上拿个按键去区分，然后三公里以内就是起步价超过三公里，每增加一公里是增加一块钱，等时,等个6秒就自动加1块钱。

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

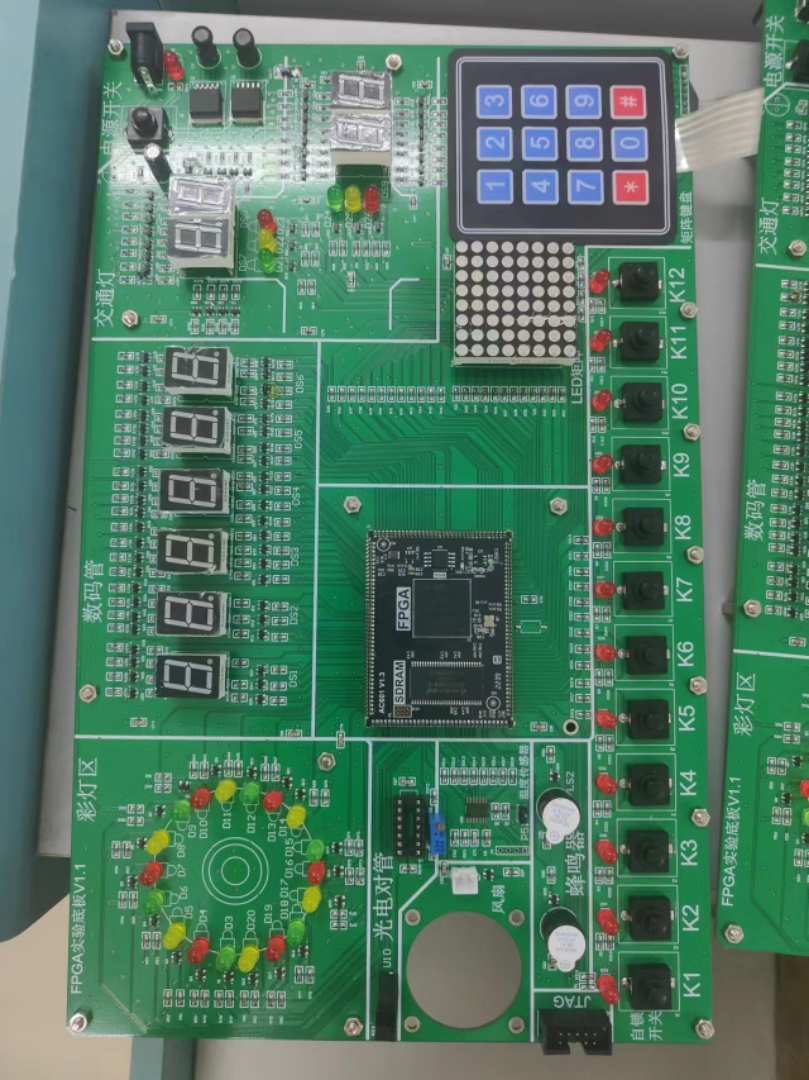

本代码已在EP4C实验箱验证，EP4C实验箱如下，其他开发板可以修改管脚适配：

演示视频：

设计文档：

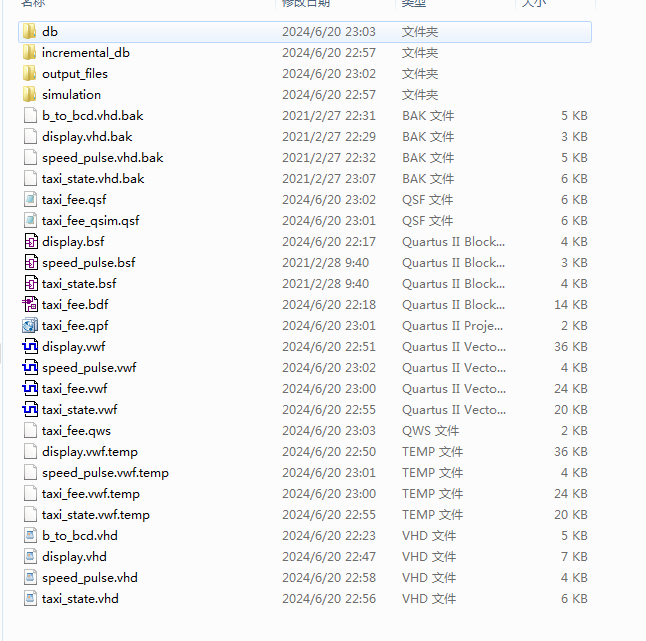

1.工程文件

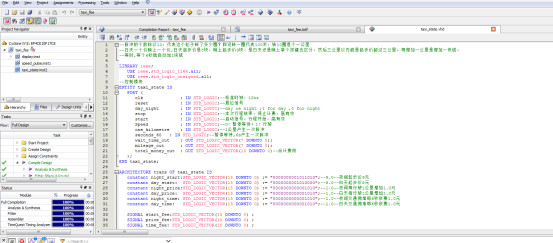

2.程序文件

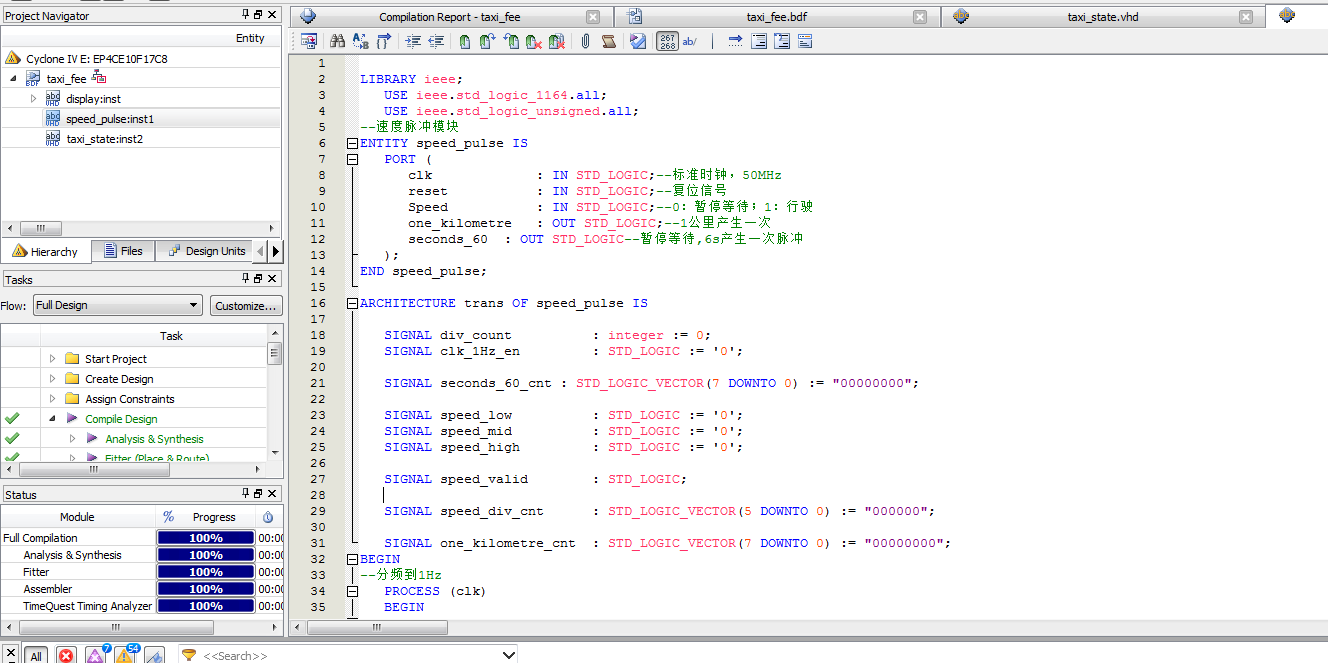

3.程序编译

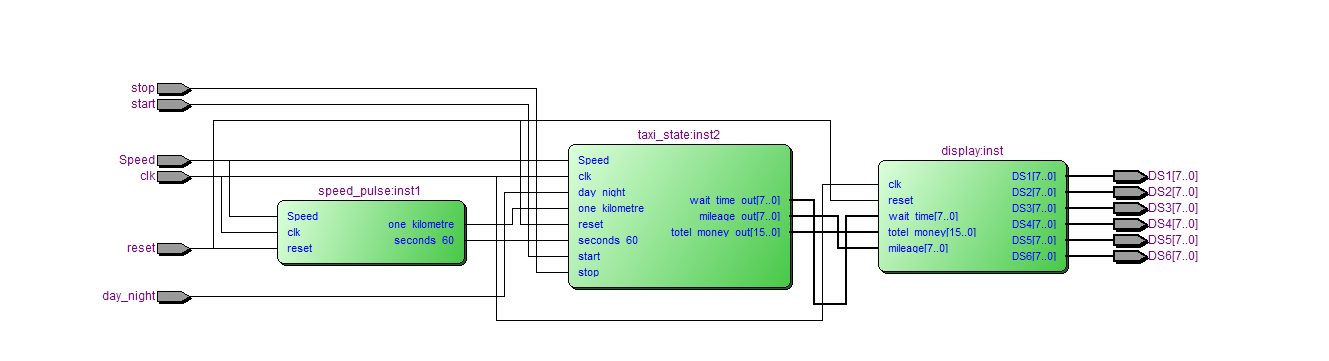

4.RTL图

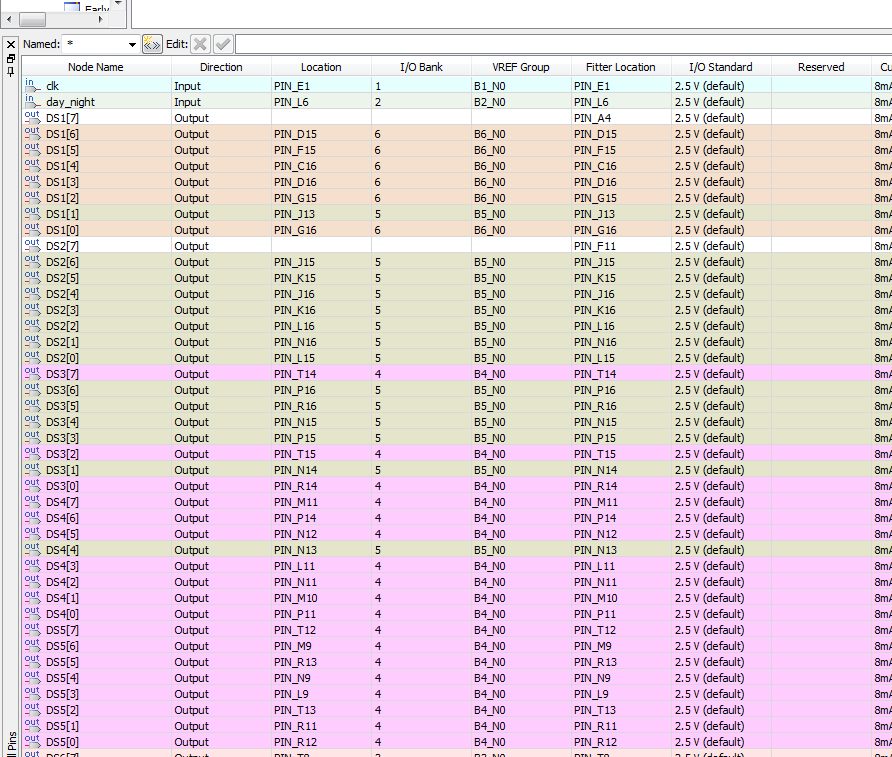

5.管脚分配

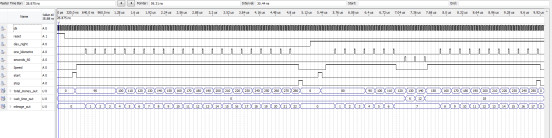

6.仿真图

部分代码展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
???USE?ieee.std_logic_unsigned.all;
--显示模块
ENTITY?display?IS
???PORT?(
??????clk??????????:?IN?STD_LOGIC;--标准时钟，10hz?
??????reset????????:?IN?STD_LOGIC;--复位信号，高有效?
??????
??????wait_time????:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);--等待时间
??????totel_money??:?IN?STD_LOGIC_VECTOR(15?DOWNTO?0);--费用
??????mileage??????:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);--里程
??????
DS1?????????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0);
DS2?????????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0);
DS3?????????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0);
DS4?????????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0);
DS5?????????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0);
DS6?????????:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)
???);
END?display;
ARCHITECTURE?trans?OF?display?IS
--二进制转BCD码
COMPONENT?b_to_bcd?IS
???PORT?(
??????clk???????:?IN?STD_LOGIC;
??????rst_n?????:?IN?STD_LOGIC;
??????binary????:?IN?STD_LOGIC_VECTOR(15?DOWNTO?0);
??????state_en??:?IN?STD_LOGIC;
??????BCD???????:?OUT?STD_LOGIC_VECTOR(15?DOWNTO?0)
???);
END?COMPONENT;
SIGNAL?BCD_mileage_out???:??STD_LOGIC_VECTOR(15?DOWNTO?0);
SIGNAL?BCD_totel_money_out???:??STD_LOGIC_VECTOR(15?DOWNTO?0);
SIGNAL?BCD_wait_time_out?:??STD_LOGIC_VECTOR(15?DOWNTO?0);
SIGNAL?mileage_exd???:??STD_LOGIC_VECTOR(15?DOWNTO?0);
SIGNAL?wait_time_exd???:??STD_LOGIC_VECTOR(15?DOWNTO?0);
???SIGNAL???Kmmoney_L????:??STD_LOGIC_VECTOR(3?DOWNTO?0);--合计费用?HML=xxx?（BCD码显示）
???SIGNAL???Kmmoney_M????:??STD_LOGIC_VECTOR(3?DOWNTO?0);
???SIGNAL???Kmmoney_H????:??STD_LOGIC_VECTOR(3?DOWNTO?0);
??????
???SIGNAL???Kmcount_H????:??STD_LOGIC_VECTOR(3?DOWNTO?0);--总路程，里程范围为HL=0~99（BCD码显示）
???SIGNAL???Kmcount_L????:??STD_LOGIC_VECTOR(3?DOWNTO?0);
??
???SIGNAL???Kmtime_H????:??STD_LOGIC_VECTOR(3?DOWNTO?0);--总时间
???SIGNAL???Kmtime_L????:??STD_LOGIC_VECTOR(3?DOWNTO?0);
BEGIN
???
mileage_exd<="00000000"?&?mileage;
wait_time_exd<="00000000"?&?wait_time;
--二进制转BCD码
BCD_mileage?:?b_to_bcd?
???PORT?MAP?(??????
??????clk???????=>clk,
??????rst_n?????=>reset,
??????binary????=>mileage_exd,
??????state_en??=>'1',
??????BCD???????=>BCD_mileage_out
???);
--二进制转BCD码
BCD_totel_money?:?b_to_bcd?
???PORT?MAP?(??????
??????clk???????=>clk,
??????rst_n?????=>reset,
??????binary????=>totel_money,
??????state_en??=>'1',
??????BCD???????=>BCD_totel_money_out
???);
--二进制转BCD码
BCD_wait_time?:?b_to_bcd?
???PORT?MAP?(??????
??????clk???????=>clk,
??????rst_n?????=>reset,
??????binary????=>wait_time_exd,
??????state_en??=>'1',
??????BCD???????=>BCD_wait_time_out
???);
