32位的ALU（算术逻辑单元）设计Verilog代码modelsim仿真

名称：32位的ALU（算术逻辑单元）设计Verilog代码modelsim仿真

软件：modelsim

语言：Verilog

代码功能：

32位的ALU（算术逻辑单元）设计

这个实验室的目标是实现一个32位的ALU（算术逻辑单元）。ALU是CPU的基本计算组件。它的操作包括和、或、加、减法等。这个家庭作业将帮助您理解CPU架构。测试台的功能是自动读取输入数据，输出错误数据。

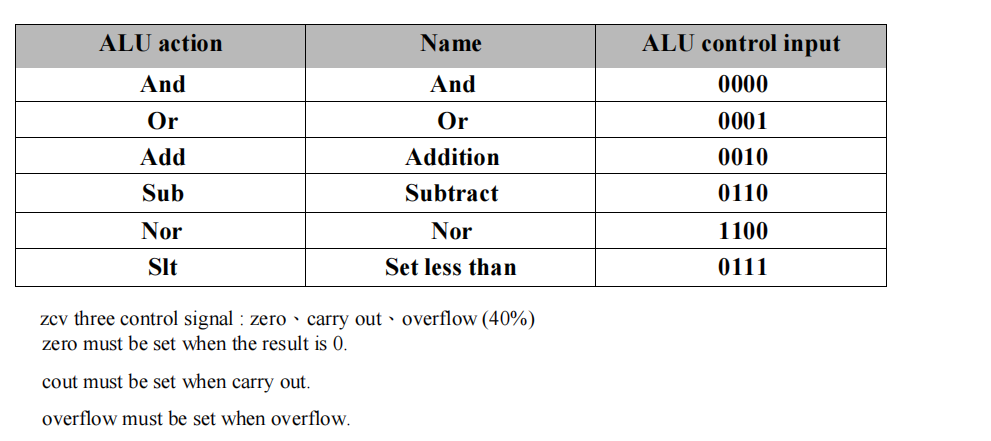

支持以下运算

FPGA代码Verilog/VHDL代码资源下载：www.hdlcode.com

演示视频：

设计文档：

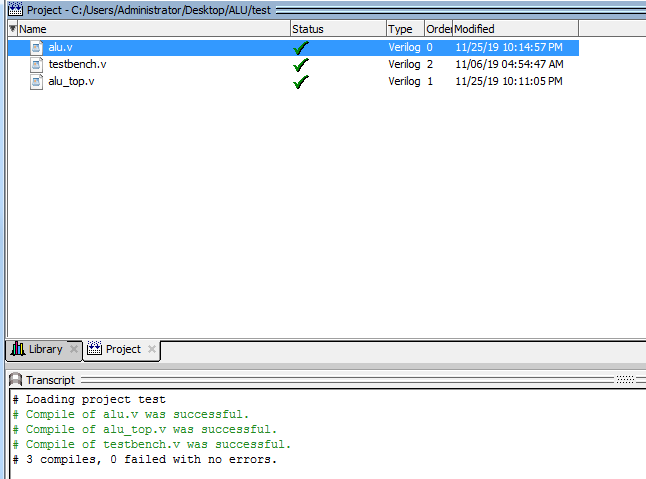

1. 程序文件

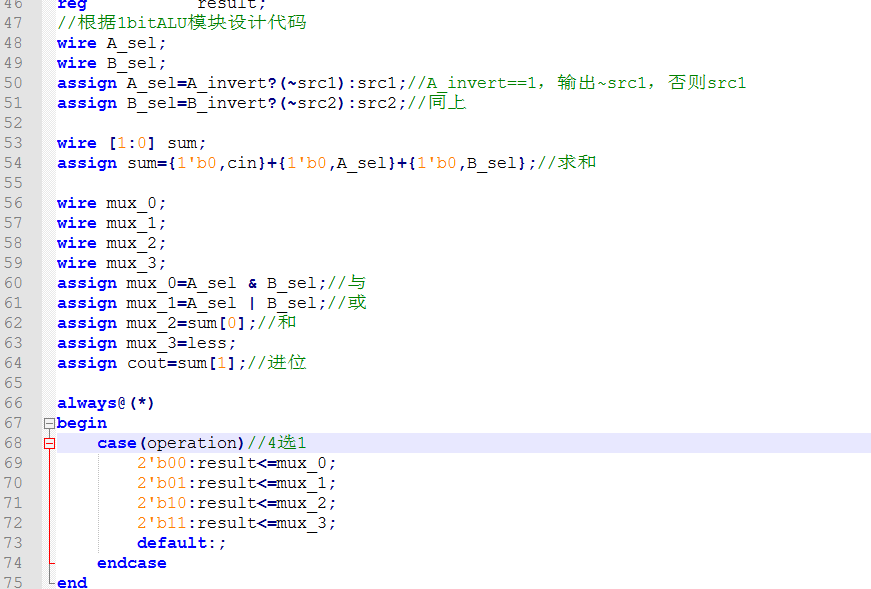

ALU_top

ALU

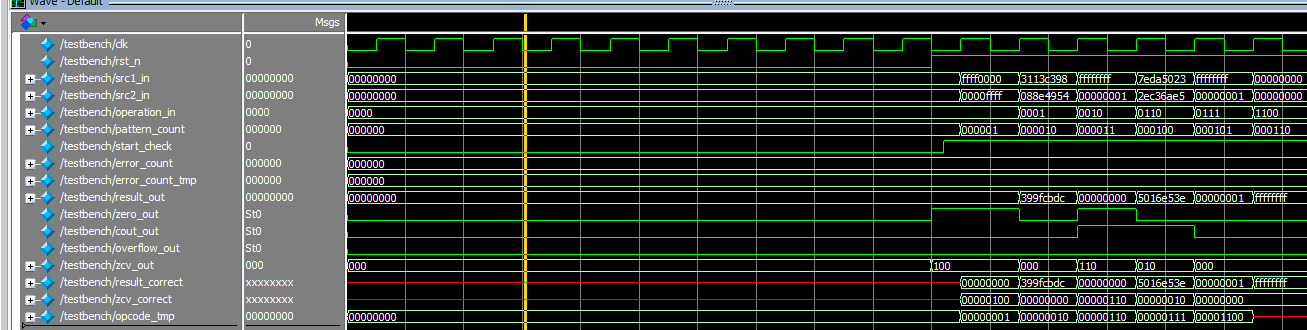

2. 仿真图

部分代码展示:

`timescale?1ns/1ps
//////////////////////////////////////////////////////////////////////////////////
//?Company:
//?Engineer:
//
//?Create?Date:????
//?Design?Name:
//?Module?Name:????alu
//?Project?Name:
//?Target?Devices:
//?Tool?versions:
//?Description:
//
//?Dependencies:
//
//?Revision:
//?Revision?0.01?-?File?Created
//?Additional?Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module?alu(
????rst_n,?????????//?negative?reset????????????(input)
????????????src1,??????????//?32?bits?source?1??????????(input)
????????????src2,??????????//?32?bits?source?2??????????(input)
????????????ALU_control,???//?4?bits?ALU?control?input??(input)
????????????result,????????//?32?bits?result????????????(output)
????????????zero,??????????//?1?bit?when?the?output?is?0,?zero?must?be?set?(output)
????????????cout,??????????//?1?bit?carry?out???????????(output)
????????????overflow???????//?1?bit?overflow????????????(output)
????????????);
input???????????rst_n;
input??[32-1:0]?src1;
input??[32-1:0]?src2;
input???[4-1:0]?ALU_control;
output?[32-1:0]?result;
output??????????zero;
output??????????cout;
output??????????overflow;
reg????[32-1:0]?result;
reg?????????????zero;
reg?????????????cout;
reg?????????????overflow;
//根据32bitALU设计代码
//调用32个1bitALU模块
wire?[32-1:0]?carry_out;
wire?[32-1:0]?result_wire;
//模块0
alu_top?i0_alu_top(
.src1(src1[0]),???????//1?bit?source?1?(input)
.src2(src2[0]),???????//1?bit?source?2?(input)
.less(1),???????//1?bit?less?????(input)
.A_invert(ALU_control[3]),???//1?bit?A_invert?(input)
.B_invert(ALU_control[2]),???//1?bit?B_invert?(input)
.cin(1'b0),????????//1?bit?carry?in?(input)
.operation(ALU_control[1:0]),??//operation??????(input)
.result(result_wire[0]),?????//1?bit?result???(output)
.cout(carry_out[0])??????//1?bit?carry?out(output)
);
//使用FOR循环调用1~30模块
generate
genvar?i;
for?(i=1;i<31;i=i+1)begin:alu_num
alu_top?i1_alu_top(
.src1(src1[i]),???????//1?bit?source?1?(input)
.src2(src2[i]),???????//1?bit?source?2?(input)
.less(0),???????//1?bit?less?????(input)
.A_invert(ALU_control[3]),???//1?bit?A_invert?(input)
.B_invert(ALU_control[2]),???//1?bit?B_invert?(input)
.cin(carry_out[i-1]),????????//1?bit?carry?in?(input)
.operation(ALU_control[1:0]),??//operation??????(input)
.result(result_wire[i]),?????//1?bit?result???(output)
.cout(carry_out[i])??????//1?bit?carry?out(output)
);
end
endgenerate

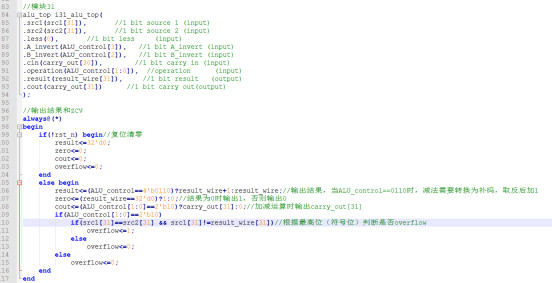

//模块31
alu_top?i31_alu_top(
.src1(src1[31]),???????//1?bit?source?1?(input)
.src2(src2[31]),???????//1?bit?source?2?(input)
.less(0),???????//1?bit?less?????(input)
.A_invert(ALU_control[3]),???//1?bit?A_invert?(input)
.B_invert(ALU_control[2]),???//1?bit?B_invert?(input)
.cin(carry_out[30]),????????//1?bit?carry?in?(input)
.operation(ALU_control[1:0]),??//operation??????(input)
.result(result_wire[31]),?????//1?bit?result???(output)
.cout(carry_out[31])??????//1?bit?carry?out(output)
);
//输出结果和ZCV
always@(*)?
begin
